Description

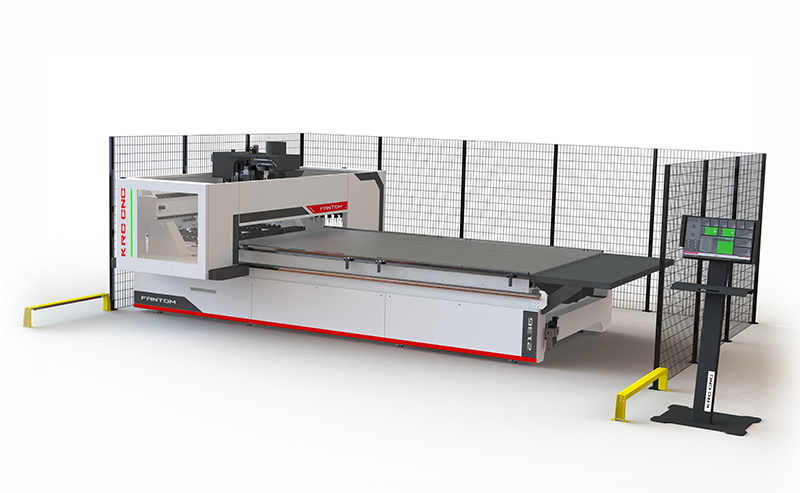

TECHNICAL SPECIFICATIONS of FANTOM 1325 |
||
|---|---|---|
| Working Area | 1300 mm x 2500 mm | |
| Z Axis Movement | 250 mm | |
| X Axis Motor | 2.3 Kw Beckhoff Servo | |
| X Axis Speed | 90m/dk (min) | |
| Y Axis Motor | 2 x 2.3 Kw Beckhoff Servo | |
| Y Axis Speed | 90m/dk (min) | |
| Z Axis Motor | 2.3 Kw Beckhoff Servo | |
| Z Axis Speed | 30/dk (min) | |
| Spindle Motor Power | 11 kw HSK F63 Hiteco | |
| Spindle Rpm. | 24000 rpm | |
| Multi Drill Unit | Optionally | |
| Multi Drill Unit Tool Group | 9 Horizontal | |
| Control Unit | Pc-Based | |
| Cad Cam Software | Alphacam 2D | |
| Lubrication System | Automatic Lubrication | |
| Tool Cooling | Air Cooling | |
| Tool Change | Automatic 10 Fixed-16 Rotary Magazine (Opt.) | |
| Vacuum Motor Power | 250m3 + 250 m3 (Opt.) | |
| Vacuum Area | 9 Area Automatic | |
| Installed Power | 40 kw | |
| Electricity | 380V – 50Hz | |
| Weight | 4500kg | |
| Safety Fence | Optionally | |
| Safety Sensor | Optionally | |
| Dimension | 3000mm X 4900mm | |
FEATURES of FANTOM 1325
- Category : Machining Center
- Type : Nesting
- Axis : 3-4
- Workpiece Widths (mm) : 1300
- Workpiece Lengths (mm) : 2500
